Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
The sockets (plugs) for processors that are supported (can be used) by the device.
LGA 1700
Memoria
Tipi di memoria supportati
Types of memory which can be used with the product.
DDR4-SDRAM
Numero di slot di memoria
4
tipo di slot di memoria
A memory slot
DIMM
Canali di memoria
Dual-channel
Non-ECC
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
The maximum internal memory which is available in the product.
128 GB
Senza buffer
Controller di archiviazione
Tipi di unità di archiviazione supportate
The type of storage drives the device is compatible with.
HDD & SSD
Interfacce dell'unità di archiviazione supportate
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
Numero di hard drive supportati
The total number of hard drives that can be used in/with this product.
4
numero di dispositivi di archivio supportati
How many storage drives can be fit into the product at once.
7
Supporto RAID
The device uses RAID
Livelli RAID
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways
0, 1, 5, 10
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
Connettori USB 3.2 Gen 2 (3.1 Gen 2)
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Connettore pannello audio frontale
Connettore del pannello anteriore
Connettore ATX (24-PIN)
Connettore ventola CPU
Numero di connettori ventola chassis
4
Connettore d'intrusione del telaio
Connettore di potenza EPS (8-Pin)
Numero di connettori COM
1
Connettore TPM
Porte Thunderbolt
1
Connettore con potenza 12V
Connettore LED RGB

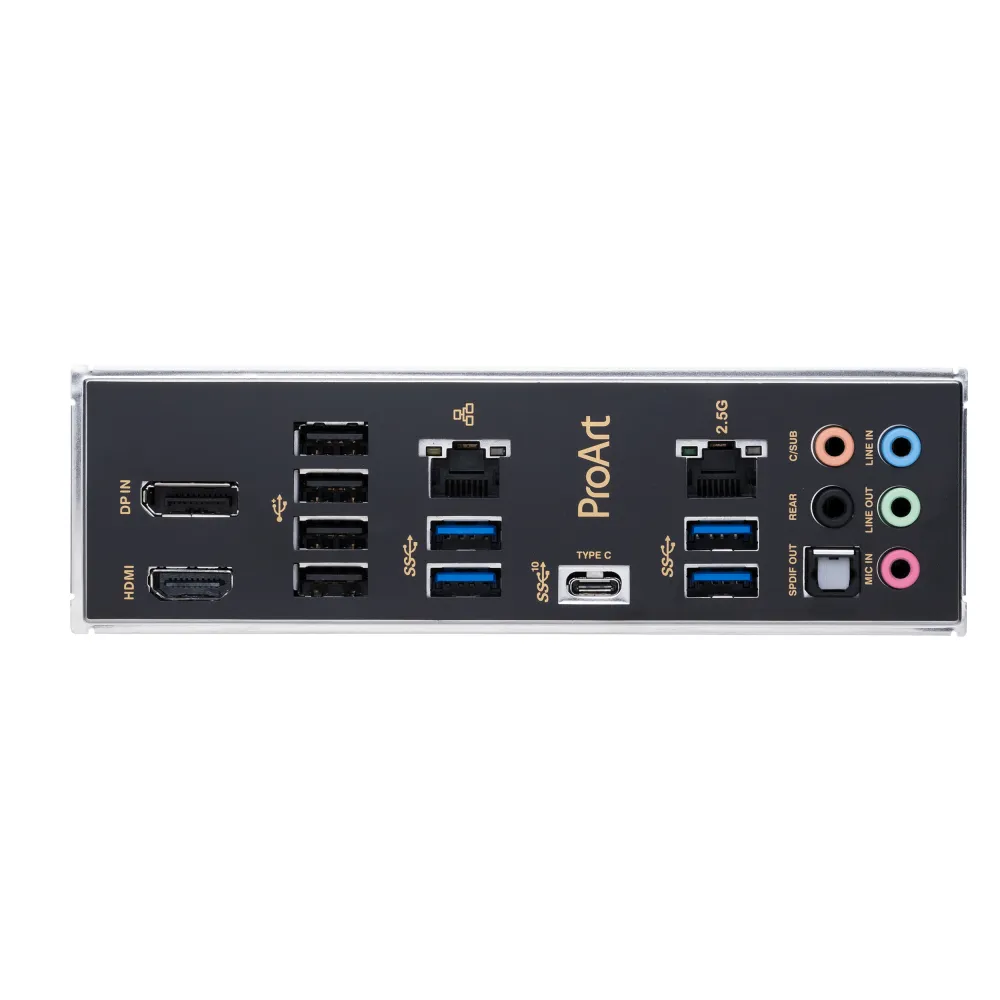

Pannello posteriore porte I/O
Quantità porte USB 2.0
La porta USB 2.0 ha una velocità di trasmissione data di 480 Mbps ed è diversamente compatibile con la porta USB 1.1 .Si può collegare qualsiasi tipo di dispositivo periferico a questi.
4
Pannello posteriore porte I/O
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
4
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo C
Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
2
Versione HDMI
2.1
Quantità DisplayPorts
Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor
1
versione DisplayPort
1.4
Uscite per cuffie
Number of sockets /ports where headphones are connected.
5
Uscita audio digitale ottico
The socket in the device for the digital audio output. The signal is carried via an optical cable with an TOSLINK connector.
1
Connettore USB
The type of USB connector/port that this product has.
USB tipo A, USB tipo-C
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Tipo di interfaccia Ethernet
2.5 Gigabit Ethernet, Gigabit Ethernet
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
Intel B660
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
Intel
Tipologia alimentazione
What the power source is.
ATX
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10 x64, Windows 11 x64
Slot espansione
Slot PCI Express x1 (Gen 3.x)
1
Slot PCI Express x16 (Gen 3.x)
Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.
1
Slot PCI Express x16 (Gen 5.x)
1
Numero di slot di M.2 (M)
3
BIOS
Dimensione memoria BIOS
128 Mbit
Jumper di azzeramento CMOS
Dati logistici
Codice del Sistema Armonizzato (SA)
84733020
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
305 mm
Profondità
The distance from the front to the back of something.
244 mm
Altezza
Altezza del prodotto
68 mm
Contenuto dell'imballo
Cavi inclusi
SATA
Altre caratteristiche
Peso
Il peso del prodotto senza imballaggio (peso netto). Se possibile, il peso netto viene espresso compreso di accessori standard e forniture . Notate che alle volte il produttore interpreta troppo seriamente il peso del prodotto,tralasciando il peso degli accessori e/o fornimenti .
