Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.
Types of memory which can be used with the product.
DDR4-SDRAM
Numero di slot di memoria
4
tipo di slot di memoria
A memory slot
DIMM
Velocità di memoria supportate
Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.
The maximum internal memory which is available in the product.
128 GB
Senza buffer
Controller di archiviazione
Interfacce dell'unità di archiviazione supportate
M.2, SATA III
I/O interni
Connettori USB 2.0
The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")
2
Connettori USB 3.2 Gen 1 (3.1 Gen 1)
This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008
1
Numero di connettori SATA III
Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface
4
Connettore pannello audio frontale
Connettore ATX (24-PIN)
Connettore ventola CPU
Numero di connettori ventola chassis
2
Connettore di potenza EPS (8-Pin)

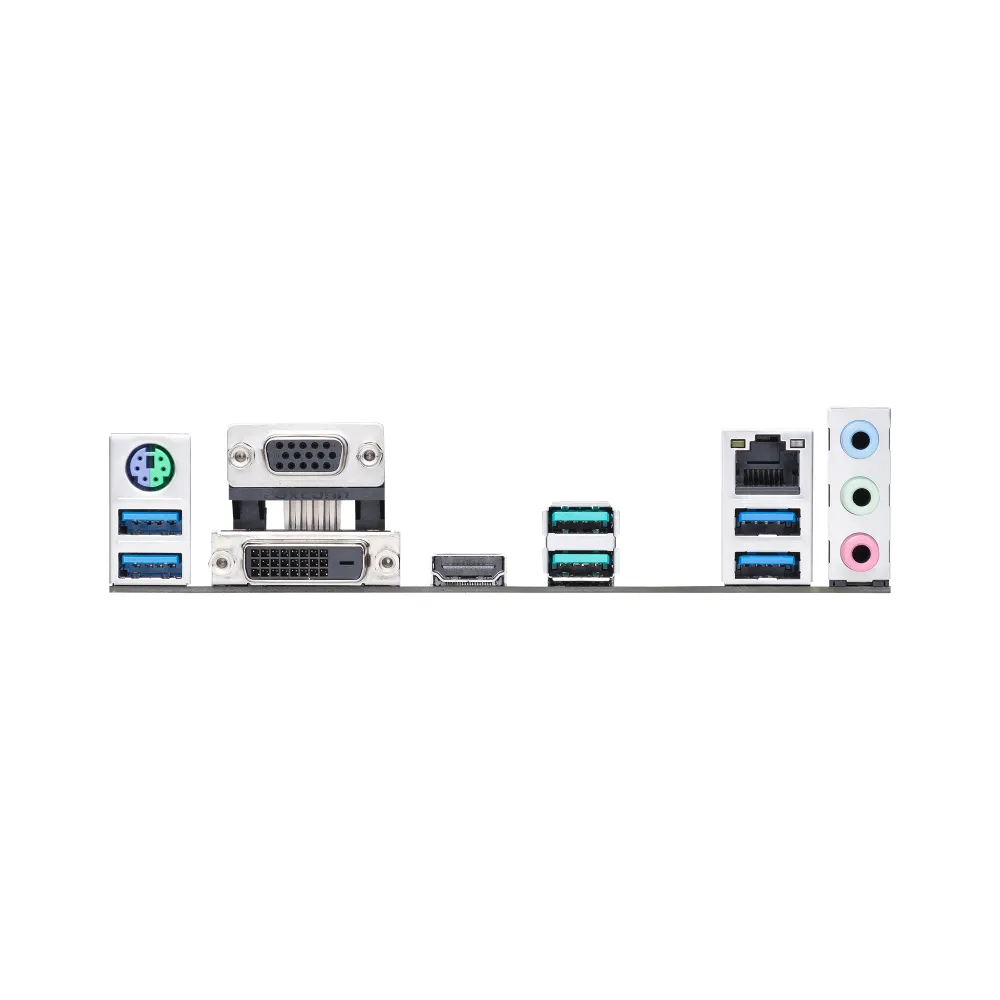

Pannello posteriore porte I/O
Quantità di porte USB 3.2 Gen 1 (3.1 Gen 1) di tipo A
4
Quantità di porte USB 3.2 Gen 2 (3.1 Gen 2) di tipo A
2
Quantità porte Ethernet LAN (RJ-45)
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
1
Quantità porte PS/2
iL numero di connettori PS2 per tastiere e mouse. Il nome deriva dal' IBM Personal System/2.
1
Quantità porte VGA (D-Sub)
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
Quantità porte HDMI
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor
1
Quantità porte DVI-D
This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device
1
Pannello posteriore porte I/O
Uscite per cuffie
Number of sockets /ports where headphones are connected.
1
Microfono, spinotto d'ingresso
The socket where a microphone is connected to the device.
Collegamento in rete
Collegamento ethernet LAN
An Ethernet LAN (Local Area Network) interface is present
Tipo di interfaccia Ethernet
Gigabit Ethernet
Controller LAN
Realtek RTL8111H
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Caratteristiche
Chipset scheda madre
The chipset connects the microprocessor to the rest of the motherboard.
AMD B550
Chip audio
Realtek ALC887
Sistema audio
An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.
7.1 canali
Componente per
What this product is used as a part of (component for).
PC
Fattore di forma scheda madre
Design of the motherboard (ATX
micro ATX
Famiglia di chipset per scheda madre
The category of motherboard chipset e.g. Intel
AMD
Sistema operativo Windows supportato
Windows vesions wich can be used with the device.
Windows 10 x64
Slot espansione
Slot PCI Express x1 (Gen 3.x)
2
Slot PCI Express x16 (Gen 4.x)
1
BIOS
Tipo BIOS
The BIOS (Basic Input/Output System) initializes and tests system hardware components
UEFI AMI
Dimensione memoria BIOS
256 Mbit
Jumper di azzeramento CMOS
Dati logistici
Codice del Sistema Armonizzato (SA)
84733020
Dimensioni e peso
Larghezza
The measurement or extent of something from side to side.
244 mm
Profondità
The distance from the front to the back of something.
244 mm
Altezza
Altezza del prodotto
51 mm
Altre caratteristiche
Peso
Il peso del prodotto senza imballaggio (peso netto). Se possibile, il peso netto viene espresso compreso di accessori standard e forniture . Notate che alle volte il produttore interpreta troppo seriamente il peso del prodotto,tralasciando il peso degli accessori e/o fornimenti .
